Product Introduction
-

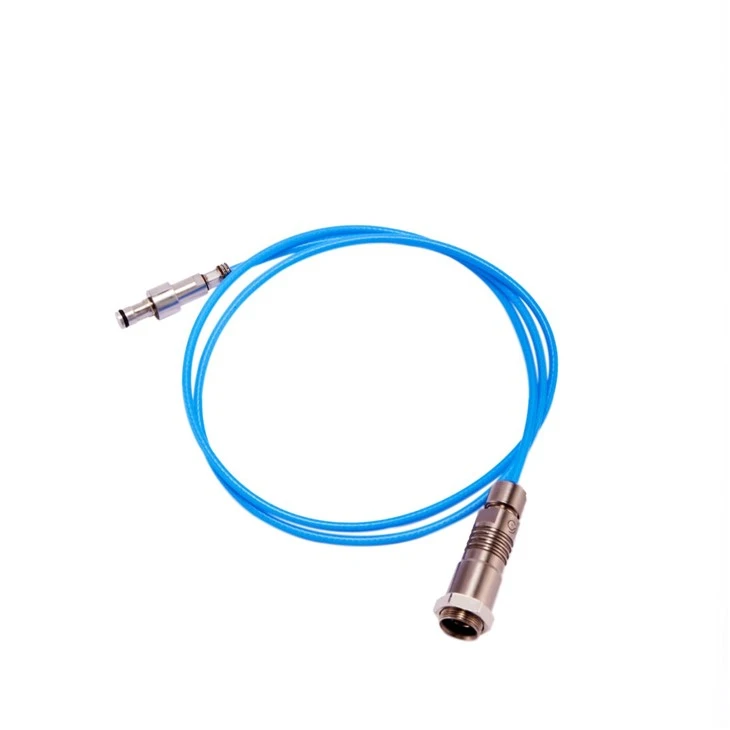

The 4mm Piezoelectric Pressure Transducer is designed for high-dynamic pressure measurement applications where space constraints and harsh environmental conditions are critical factors.
-
Utilizing a high-performance piezoelectric quartz sensing element, the transducer converts mechanical pressure into highly stable electrical signals with exceptional accuracy.
-
The diaphragm of the 4mm Piezoelectric Pressure Transducer is made of corrosion-resistant 17-4PH stainless steel, ensures broad media compatibility for both gases and compatible liquids. Its ultra-compact 4mm design enables easy integration into space-limited systems without sacrificing performance. Advanced built-in temperature compensation technology guarantees excellent long-term stability-with less than 0.1% FS/year drift-across an extensive operating temperature range.
-
Ideal for industrial automation, fluid control, test & measurement, and high-vibration environments, this pressure transducer undergoes rigorous calibration and aging tests to deliver outstanding repeatability and reliability. 4mm piezoelectric pressure sensors are especially suited for applications requiring fast response, high overload resistance, and stable performance under extreme temperatures and pressures.
Features
Miniature & High Compatibility
With a tiny 4mm diameter, this miniature pressure sensor is ideal for confined spaces. Multiple process interfaces offer easy installation and system integration.
01
Robust Construction
Featuring 17-4PH media parts and IP67 protection rating. Built to withstand harsh industrial environments, shock, and vibration for reliable operation.
02
Wide Range & High Overload
Measures pressures up to 250 bar. Exceptional overload pressure capability protects the transducer from pressure spikes, ensuring longevity.
03
High-Temperature & Fast Response
Operates in a high-temperature range from -50°C to 200°C with excellent stability. Based on piezoelectric effect, fast response speed.
04
Specifications
|
Output Signal |
Charge (PE) |
|
Pressure Range |
250bar |
| Over Pressure | 300bar |
|
Sensitivity |
10pC/bar |
|
Linearity |
±1%FS |
|
Operating Temperature Range |
-50°C~200°C |
| Response Frequency | 100kHz |
| Insulation Resistance | 1012Ω |
| Protection Degree | IP67 |
Application
4mm Piezoelectric Pressure Transducer is engineered for high-precision, high-dynamic pressure monitoring across a wide range of demanding industries. Its miniature size, exceptional durability, and reliable performance under extreme conditions make it the ideal solution for the following applications:
Industrial Automation & Fluid Power Systems
Used for hydraulic systems, pneumatic control, and pump and valve pressure monitoring, achieving precise pressure feedback and control.
Engine, Turbine & Compressor Testing
Suitable for dynamic pressure measurement of high-temperature, high-pressure gases in internal combustion engines, gas turbines, compressors, and other applications.
Scientific Research & Laboratory Measurement
Integrated into research equipment such as wind tunnels, blast tests, and impact tests, providing high-frequency response pressure data.
Energy & Power Generation Equipment
Used for pressure monitoring in oil and gas pipelines, hydroturbines, wind power generation systems, and other applications, adapting to high-temperature and high-vibration environments.
Automotive & Aerospace Systems
Used in high-precision pressure sensing applications such as engine testing, fuel systems, and aircraft hydraulic systems.
Kind Tips
-
During installation, ensure that the process interface is properly sealed to prevent leakage.
-
Always follow the instructions for electrical connections and avoid reverse polarity or overvoltage excitation.
-
In environments with high temperatures or strong vibration, it is recommended to use shielded cables and secure them securely.
-
During storage and transportation, avoid severe impact and high temperature and humidity.
-
Perform zero point calibration regularly to ensure measurement accuracy. If any output abnormalities occur, please promptly inspect the device.
-
Our Technical Support Team is Here for You
Should you have any further requirements or encounter any questions during use, our professional technical team is always ready to provide you with support and assistance. If necessary, we can dispatch specialists to offer on-site technical support to ensure optimal performance of the products. Please do not hesitate to contact us.
FAQ
Q: What types of media can this pressure sensor measure?
A: The 17-4PH stainless steel sensing diaphragm offers excellent compatibility with a wide range of media, including various gases (air, nitrogen, etc.) and liquids that are compatible with stainless steel, such as water, hydraulic oil, and some fuels. It is not suitable for corrosive media that attack stainless steel.
Q: My application has high electrical noise. How can I ensure a stable signal?
A: For environments with significant electromagnetic interference (EMI), we strongly recommend using a shielded cable. Proper grounding of the cable shield is crucial to minimize noise and ensure signal integrity.
Q: Do you offer custom process connections or specifications?
A: Yes, as a manufacturer, we provide OEM and customization services. Please contact our technical team to discuss your specific requirements for connection types, cables, ranges, or other parameters.
