Product Introduction

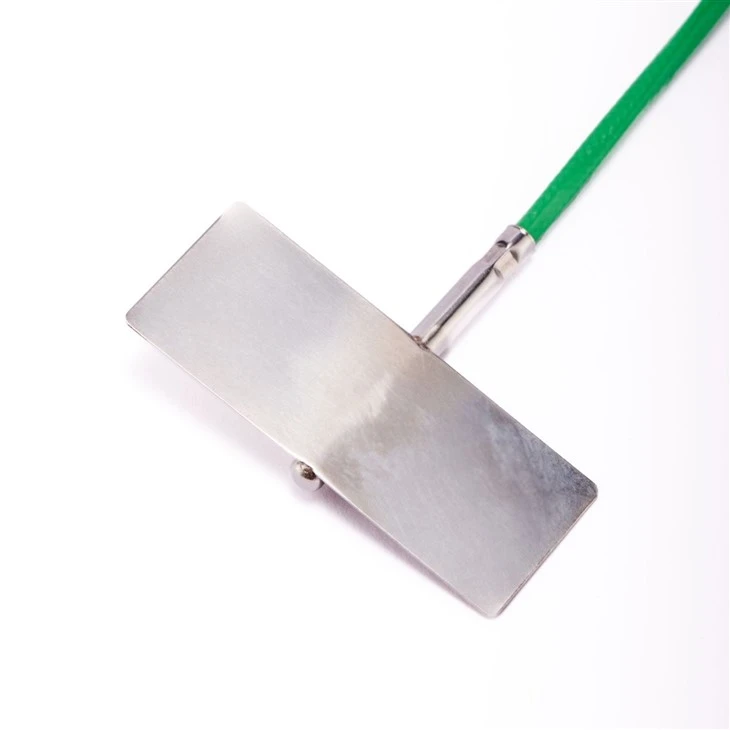

- Our Surface Mount Thermometer is a high-precision temperature sensor designed for accurate surface temperature measurement across various industrial applications. Featuring a innovative non-drilling mounting design, it installs effortlessly using thermal adhesive or screws, ensuring minimal impact on measured surfaces while maintaining excellent thermal contact for fast response times.
- The surface mount thermometer utilizes a high-accuracy Pt100 platinum resistor element (with options for Pt1000, Pt500, or NTC thermistor) encapsulated in a durable stainless steel housing. Combined with flexible high-temperature resistant leads, it delivers reliable and stable performance even in demanding environmental conditions.
- With customizable options including dimensions, lead length, wire configuration, and accuracy classes, our surface mount thermometer is ideal for space-constrained applications where drilling is impractical. They are an ideal solution for surface temperature monitoring in industrial automation, new energy, power equipment, medical devices, and automotive electronics.
Features
Non-Drilling Surface Mounting
Unique patch structure, compact size design that securely attaches with thermal adhesive or screws without requiring drilling, minimizing impact on measured surfaces.
01
High-Temperature Flexible Lead Wire
Equipped with durable, heat-resistant insulation materials (silicone rubber/PTFE/mica) for reliable performance in demanding environments and wide temperature ranges.
02
Fast Response for Real-Time Monitoring
Delivers rapid thermal response to quickly capture surface temperature changes, ideal for applications requiring instant feedback and space-constrained installations.
03
Specifications
|
Type |
Platinum resistors: pt100, pt1000, pt500, pt200 Thermocouples: K/J/N/E/S/T/R/B Thermistors: 5K, 10K, 100K, 50K, 2.2K DS18B20 |
|
Accuracy |
Platinum Resistors: Class A, B, 1/3B Thermocouples: Class I, II Thermistors: 1%, 2%, 3% DS18B20: none |
|
Temperature Range |
Platinum resistance: -200°C to 850°C Thermocouple: -280°C to 1820°C Thermistor: -50°C to 300°C DS18B20: -55°C to 125°C |
|
Connection |
Platinum resistors: two-wire, three-wire, four-wire Thermocouples: none Thermistors: none DS18B20: none |
|
Lead Wire Terminal |
Exposed, U-type Terminal, Pin Terminal, Connector, O-type Terminal |
|
Bend Protection |
No Bend Protection, Spring, Hose |
|
Lead Wire Length (mm) |
500, 1000, 2000 or specified |
|
Mounting Dimensions (mm) |
specified |
Application
Industrial Automation & Drives
Monitors temperature of motor housings, bearings, frequency converter heat sinks, servo drive power units, PLC modules, and industrial busbars to prevent overheating and ensure operational reliability.
New Energy Systems
Temperature monitoring of key components such as the backside of solar panels, battery pack surface temperature, and charging ports.
Power Equipment & Electrical Systems
Temperature monitoring of terminal blocks, transformer windings, and switchgear in distribution cabinets, enabling electrical fire warnings and equipment status monitoring.
Automotive Electronics
Monitors engine component temperatures and supports thermal management in vehicle control systems for enhanced performance and safety.
Medical Devices
Surface mount thermometer provides accurate temperature measurement for medical equipment, including temperature monitoring devices such as thermometers.Electronics & Telecommunications
Kind Tips
1. Pre-Installation Inspection: Check the sensor patch for dents, deformation, or damage to the lead before installation.
2. Preparing the Mounting Surface: This is the most critical step.
Use sandpaper or a cleaning agent to thoroughly remove any oxide layer, oil, dust, insulating paint, or other impurities from the surface of the object being measured until the natural metal color is exposed and the surface is flat. Proper surface preparation ensures minimal thermal resistance for accurate measurements.
3. Secure Mounting Methods
For screw-mounted: Fasten securely using provided stainless steel screws with spring washers, applying appropriate torque without over-tightening.
For thermal adhesive mounting: Use high-temperature epoxy or specialized thermal tape. Ensure an even adhesive layer that completely covers the bottom of the sensor and is free of large bubbles.
4. Environmental Considerations: Avoid installing in areas with condensation accumulation, direct corrosive fluid splash, or excessive vibration unless a specially protected model is selected.
FAQ
Q: What types of surfaces is this sensor suitable for?
A: It works on flat and curved metal, plastic, or composite surfaces, but requires proper cleaning and mounting to ensure accuracy.
Q: How do I attach the thermometer to a surface?
A: You can use high-temperature thermal adhesive, screws, or mounting clips, depending on the model and application requirements.
Q: Can I customize lead length or connector type?
A: Yes, we offer customization for lead length, connector styles, and probe sizes to meet specific application needs.
Q: What industries is this surface mount thermometer used in?
A: It is widely used in automotive, industrial automation, energy systems, medical devices, and consumer electronics.
